Starway Three-Axle Grain Trailer: Designed For Heavy Loads And Efficient Unloading :
Starway three-axle grain trailers are designed to handle the toughest cargo, with payload capacities up to 60 tons. The 3-axle configuration ensures optimal weight distribution, providing the strength and stability needed to transport large quantities of grain and other agricultural products.
One of the standout features of the Starway three-axle grain trailer is its body, specifically designed to prevent grain entrapment. The smooth and rounded inner wall ensures that each batch can be unloaded efficiently without the risk of leftover grain, minimizing waste and making the unloading process faster and more efficient.
At Starway, we understand that every business has unique requirements, which is why we offer comprehensive customization options for our three-axle grain trailers. Whether you need extra axles for greater capacity, specific body dimensions to suit your operation, or a specific unloading configuration, we can tailor a trailer to your exact needs. Choose from a variety of tire options and other features to match your unique specifications and increase the efficiency of grain transportation.

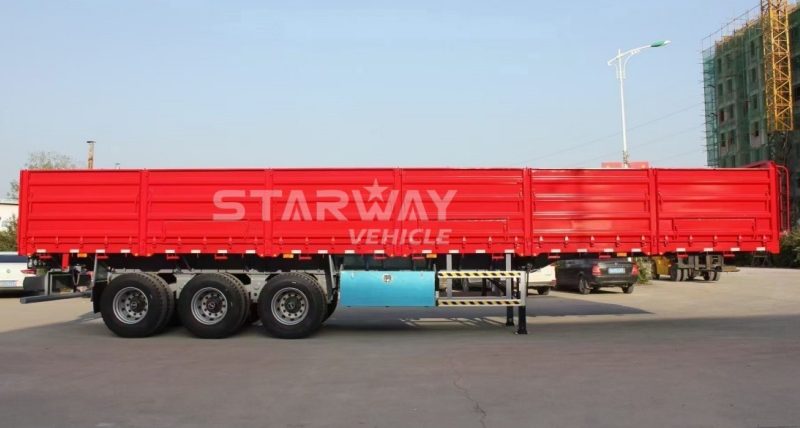

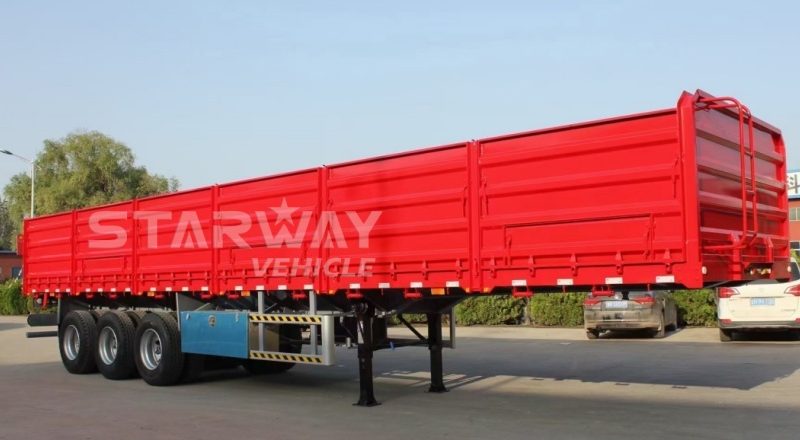

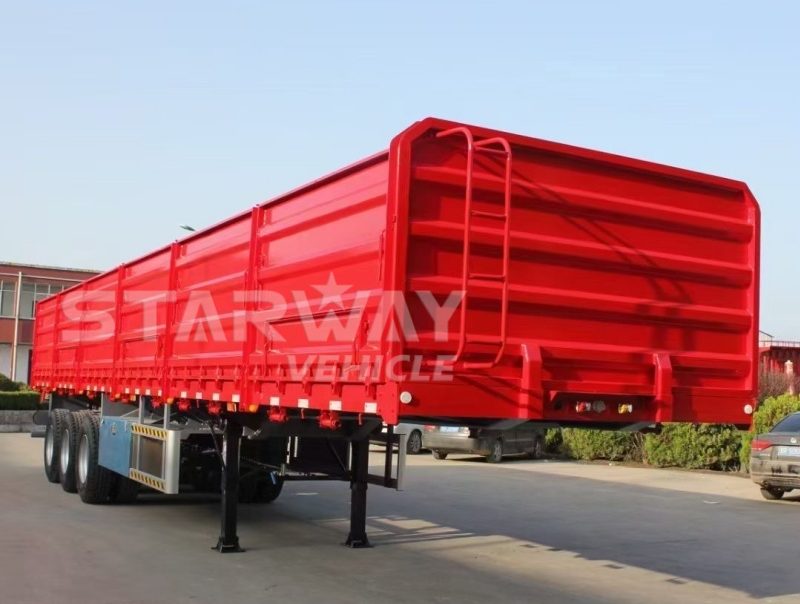

Grain Sidewall Semi Trailer For Sale In Congo
Grain Sidewall Semi Trailer For Sale In Congo
The specification of standard 3axles sidewall semi trailer :
Dimension :13000x2500x1580mm(Customer Requirement)
Sidewall Height :600mm
Main beam:Material: Q345B; “H” beam height: 500mm; Top/middle/bottom: 12/8/14(mm)
Through beam:#10 channel steel
Side beam :#16 channel steel
Loading capacity :60 T
Paint: Powder spraying and coating
Color:Per customer’s requirement
Axle:BPW/Fuwa/Starway/ 13 ton x 3
Tire: Triangle 12R22.5x 12 + one spare tyre
Rim:900*22.5 *13
Suspension:Mechanical suspension or air suspension(brand optional)
Leaf spring:Leaf spring 10pcs*90*13mm or air bag
Landing gear:JOST or other brand two-speed, landing gear 28T
Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System :Dual line pneumatic brake, SAE hose and connector,with WABCO ABS
Accessories:Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
